  GP-18(Ø3 ~ Ø13),(135∘)SG Drill Bit

sample 1

  MODEL : GP-18(Ø3 ~ Ø13),(135∘)SG Drill Bit


Item Specification
Bit Diameter Ø3 ~ Ø13 mm
Point Angle  135∘
Power Supply AC 110V 50/60Hz ; AC 220V (Opt.)
RPM of Motor 4500 r.p.m.
Grinding Wheel CBN #200
Weight N.W.: 8.1 / G.W.: 9.1 kgs
Machine Size  282 x 135 x 143 mm
Packing Size 362 x 215 x 223 mm
Type of Thinning X Thinning

Item Q'ty Unit Remark
Grinding Wheel 4 PCS CBN#200 (A,B,C,D)

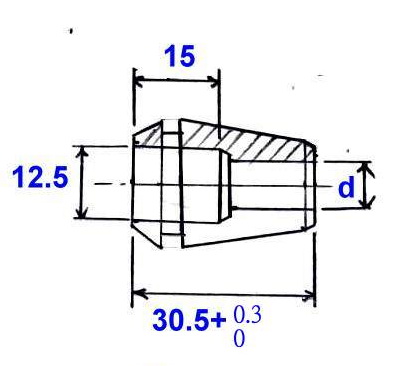

Collet 12 PCS Ø3 ~ Ø13 / EACH
Clamp sets 1 SET Clamp & Clamping Nut
Hexagon Wrench 1 PCS 3mm

Item Specification
Grinding Wheel SDC# 230 Diamond Wheel for Carbide Drill Bit
Lamp Moveable LED Lamp

Model Features Applied Fields
GP-18 The sharpened bits by SG M/C is 5 times durable than bits sharpened by GP1 or GP11 Automatic Lathe CNC Turning
GP-28 CNC Milling, M/C
　 　
